DC - 18 GHz Precision Performance
• 7mm Precision Performance
- Broad Frequency Band Coverage
- Low VSWR - 50 Ohm - High Performance.
- Rugged Stainless Steel Interface Construction

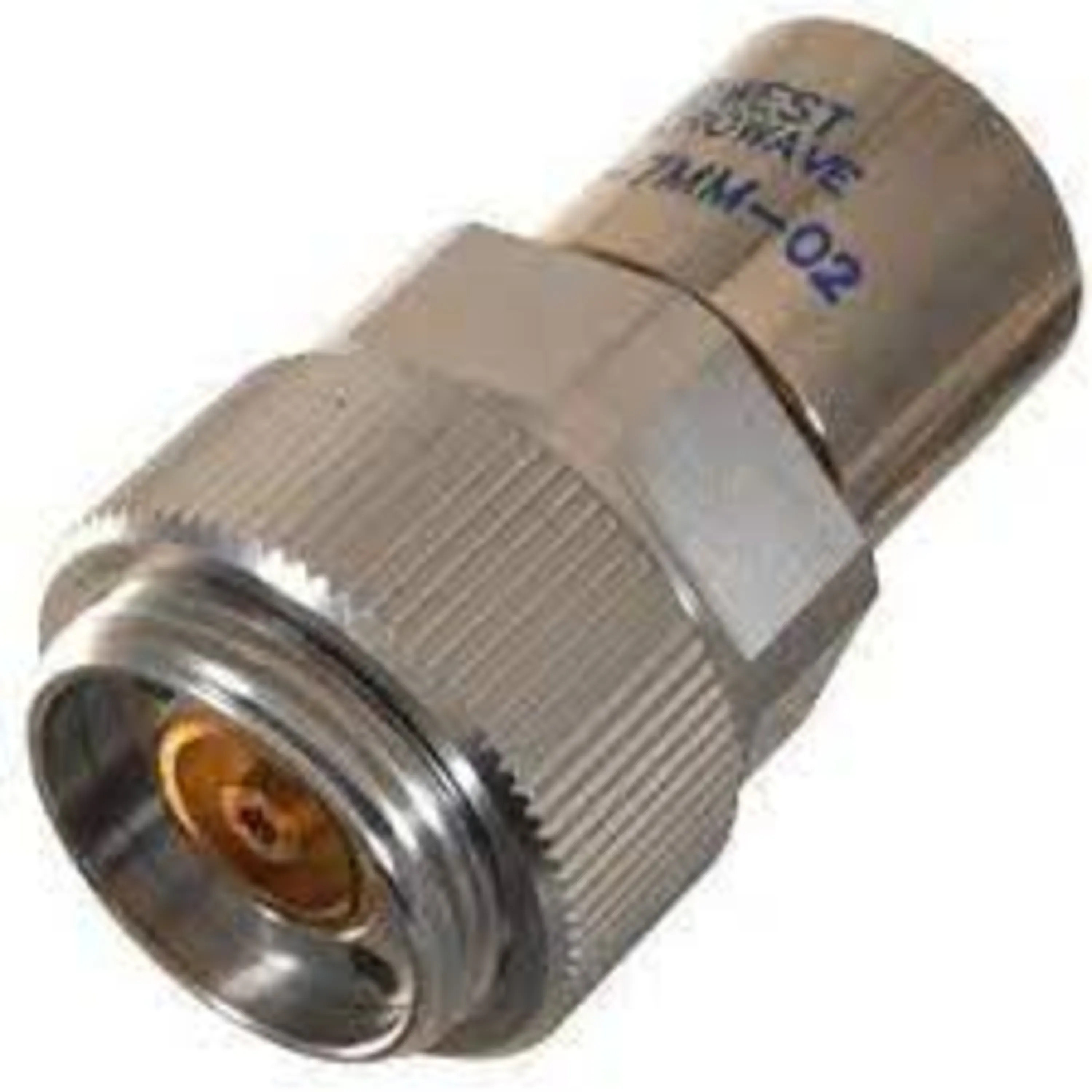

Midwest Microwave's 7mm series of coaxial Terminations provide tem- perature stable, ruggedly built, precision performance in light weight rea- sonably sized packages using stainless steel connectors and in the case of medium power units, black anodized finned aluminum housings to dis- sipate heat efficiently. Low VSWR performance is exhibited and units are suitable for laboratory test systems as well as operating systems.
7mm Precision DC - 18 GHz
Impedance: 50 Ohms Frequency: DC - 18.0 GHz VSWR: 1.03 + 0.003 f (GHz)
Power: 2 Watts average @ +25 oC derated linearly to 0.5 Watts @ +125 oC
Peak Power: 1 Kilowatt
Operating Temperature Range: -54 oC to +125 oC
